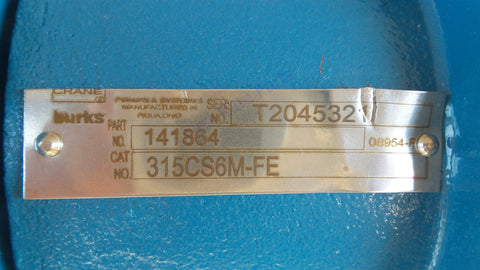

Burks 315CS6M-FE Turbine Pump 315CS6M FE 1-1/2 HP Cast Iron Jet 230V 460V 3PH
IN STOCK, Ships immediately!!
This is the CHEAPEST price ANYWHERE on a genuine part.
This is new, never used or installed.
THIS IS A GENUINE OEM BURKS PUMP!! THIS IS NOT A CHEAP AFTERMARKET OR USED PART THAT WILL NOT LAST AND WILL NEED REPLACED!! DON'T WASTE TIME, MONEY, AND HASSLE REPLACING IT AGAIN!!!
Ships from the USA! Don't wait weeks or months to receive a counterfeit part from overseas!
Note: this is a brand new part with some scratches and scuffs from storage and handling as shown in the pics. Minor cosmetic imperfections will not affect performance or functionality.
Ships in generic bulk packaging.
No additional parts or components are included beyond the items as shown in pics.
Get the best price ANYWHERE HERE!!!
Get your genuine high end part for much cheaper here. Don't worry about old used parts breaking, this is brand new. Don't settle for used parts this is brand new.
This part sells for over $2485
All returns must be returned in the original as received uninstalled condition with all accessories, components, and packaging. Items must be well packaged and insured. Buyers are responsible to ensure that items are received back to us in the original undamaged condition. Buyer is responsible for all shipping costs. Buyer must retain all packaging for an item damaged in shipment. A shipping claim cannot be processed without original packaging and hence the item cannot be returned or refunded.

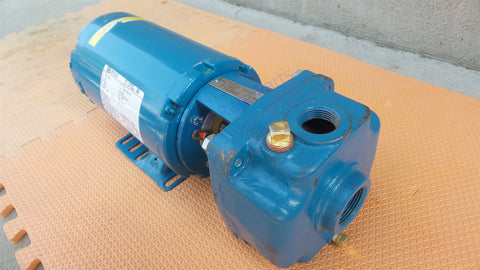

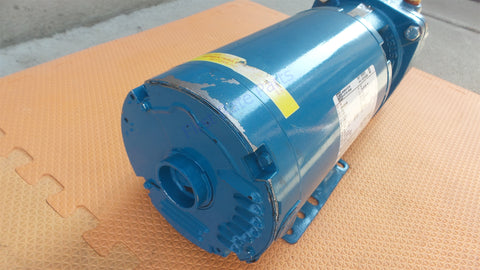

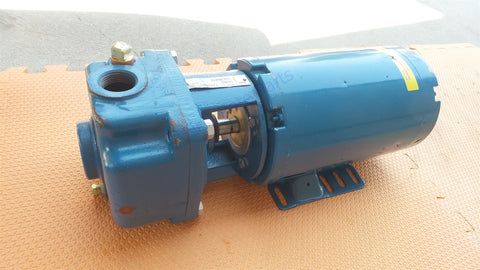

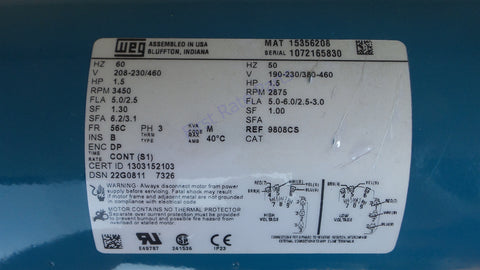

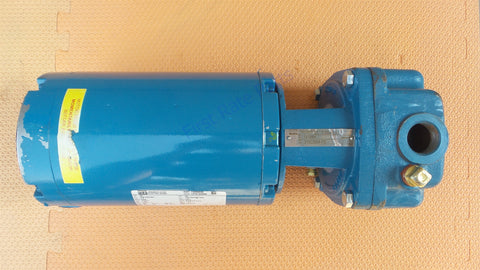

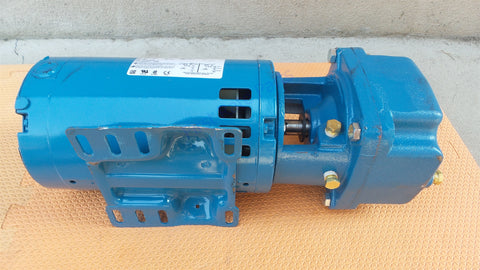

The Burks 315CS6M-FE is a Cast Iron Turbine Pump and FE Motor with a Bronze Impeller, Buna-N/Carbon/Ceramic/SS Mechanical Seal, 1-1/4 Inch NPT Inlet, 1 Inch NPT Outlet Ports, close coupled to a 1-1/2 Horsepower, 3500 RPM, 208-230/460 Volts, 3 Phase, ODP Open Drip Proof, 60/50Hz Motor. This pump has a maximum performance of up to 10. 7 gallons per minute water flow at 250 feet of head (108 PSI). The motor on this pump has open drip proof construction and is rated with jet pump service factors for continuous duty operation at all ratings shown. The three phase motor on this pump requires a magnetic type starter which provides full 3-leg overload protection. This pump is the special -FE version with the OEM pump motor. This compact turbine pump is designed for pumping clear water and many other nonabrasive, lower viscosity liquids on high pressure, low capacity applications with the greatest possible efficiency. The Bronze impeller with Monel blades is the only moving part and the Bronze raceway with cast-in vortex pockets will not vapor lock. This pump's unique design is engineered for many applications requiring higher pressures and lower capacities impossible for other single stage pumps of a similar size, and the pump's compact space-saving size without a coupling eliminates misalignment problems. The operating temperature limits of this pump depend on the seal elastomer and the following temperature limit applies for Buna-N Seals : 225 degrees F (107 degrees C). The pump shaft seal is a mechanical seal with ceramic seat and carbon seal face for maximum durability, and long trouble-free service. While this pump can be run dry for short periods of time, a lack of liquid will damage the Mechanical seal. The wetted material in contact with the liquid are Cast Iron, Bronze, 303 Stainless Steel, and Buna-N. The dimensions of this pump are 21 inches long, 9 inches high, and 6-1/2 inches wide.
WEIGHT : This pump and motor unit weighs 60 Lbs.
Fits: (may fit various models, you are responsible to verify this is the correct part number for your application)
