Char-Lynn

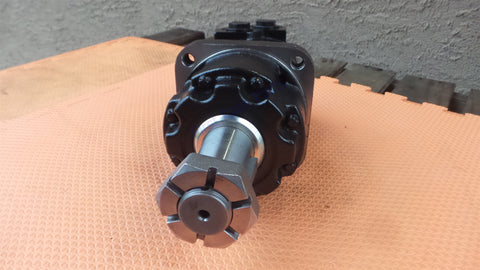

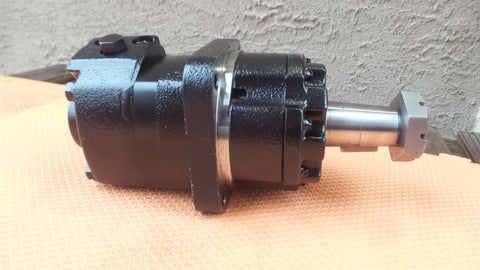

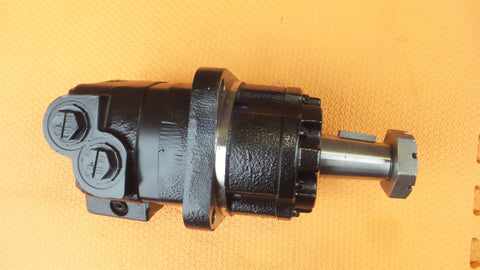

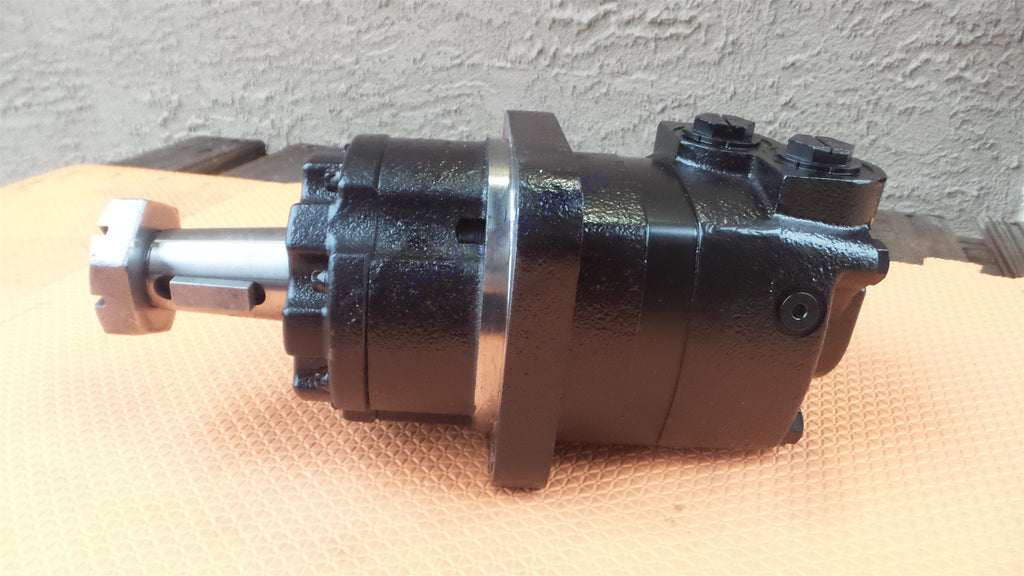

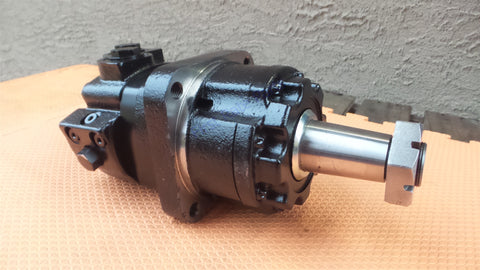

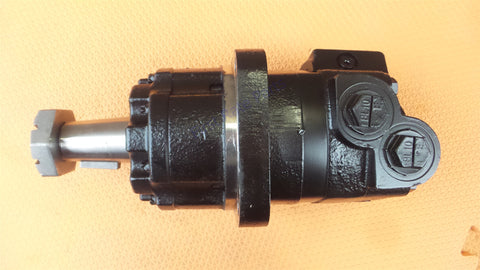

Char-Lynn 110-1232-006 Hydraulic Motor Danfoss Eaton Wheel 4000 Genuine
Char-Lynn 110-1232-006 Hydraulic Motor Danfoss Eaton Wheel 4000 Genuine OEM NEW
LAST ONE!!!
IN STOCK, Ships immediately!!
This is the CHEAPEST price ANYWHERE on a genuine part.
This is new, never used or installed.
THIS IS A GENUINE OEM CHAR-LYNN MOTOR!! THIS IS NOT A CHEAP AFTERMARKET OR USED PART THAT WILL NOT LAST AND WILL NEED REPLACED!! DON'T WASTE TIME, MONEY, AND HASSLE REPLACING IT AGAIN!!
Ships from the USA! Don't wait weeks or months to receive a counterfeit part from overseas!
Ships in generic bulk packaging.
No additional parts or components are included beyond the items as shown in pics.
Get the best price ANYWHERE HERE!!!
Get your genuine high end part for much cheaper here. Don't worry about old used parts breaking, this is brand new. Don't settle for used parts this is brand new.
This part sells for over $2285
All returns must be returned in the original as received uninstalled condition with all accessories, components, and packaging. Items must be well packaged and insured. Buyers are responsible to ensure that items are received back to us in the original undamaged condition. Buyer is responsible for all shipping costs. Buyer must retain all packaging for an item damaged in shipment. A shipping claim cannot be processed without original packaging and hence the item cannot be returned or refunded.
|
Characteristic
|
Value
|
Description
|
|---|---|---|
| Model Code |
M04080AD02AB06D0004000600AD00F
|
|
| Motor Series |
4000 Series
|
|
| Valve system |
Disc valve with valve drive
|
|
| Orbital gearwheel set type |
Geroler
|
|
| Motor size |
130
|
|
| Geometric displacement [cm3/r [in3/r]] |
130.3 [7.95]
|
|
| Motor type |
Wheel
|
|
| Motor function |
Standard
|
|
| Mounting flange type |
4 Bolt - Wheel
|
|
| Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]] |
127.0 x 9.1, 147.6, 1/2 - 13 UNC-2B [5.00 x 0.36, 5.81, 1/2 - 13 UNC-2B]
|
|
| Shaft dimension |
Dia. 1 5/8 inch, 1:8, 1 1/4 - 18 UNEF-2A thread in shaft end
|
|
| Shaft Key |
Square key, 7/16 x 1 1/4 inch
|
|
| Main port thread type |
UN / UNF
|
|
| Main port style |
Sideport - staggered
|
|
| Main port dimension |
1 1/16 - 12 UN-2B SAE O-Ring port
|
|
| Drain Port Dimension |
7/16 - 20 UNF-2B SAE O-Ring port
|
|
| Brake Release Port Dimension |
n/a
|
|
| Painted |
Yes
|
|
| Paint information |
Primer, Black, Low gloss
|
|
| Special Features Assembly |
Standard
|
|
| Dust seal |
Seal Guard
|
|
| Shaft Seal |
NBR - Standard
|
|
| Seal Kit |
61290-000
|
|
| Front bearing type |
Tapered roller bearing
|
|
| Rear bearing type |
Tapered roller bearing
|
|
| Orbital gearwheel set |
Standard
|
|
| Check valve function |
No
|
|
| Hydraulic valve function |
Low pressure relief @ 11.0 bar [160 psi]
|
|
| Sensor |
None
|
|
| Packaging |
Bulk box
|
|
| Name Tag |
Danfoss name tag
|
|
| Design code |
06
|
Fits: (may fit various models, you are responsible to verify this is the correct part number for your application)
