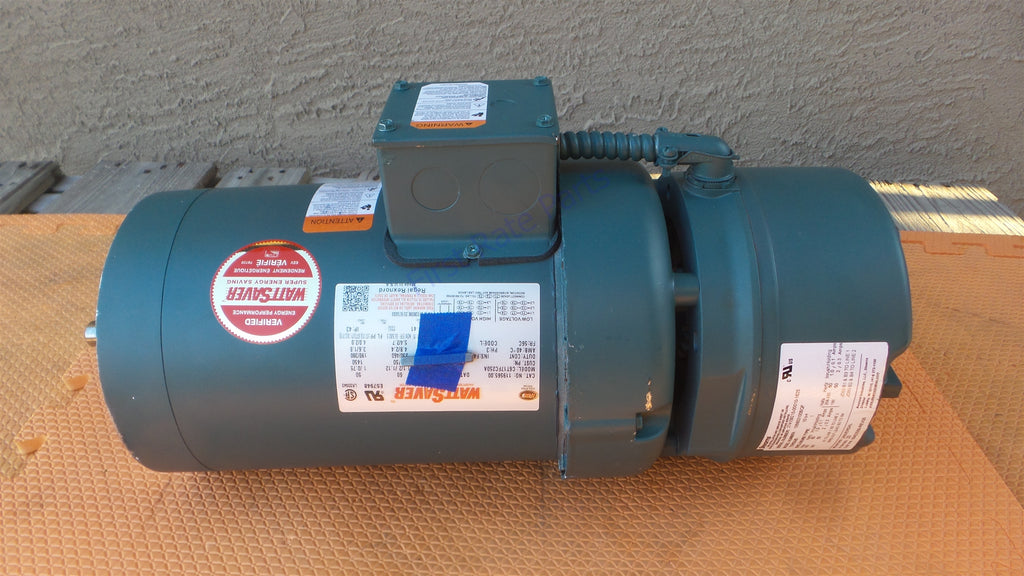

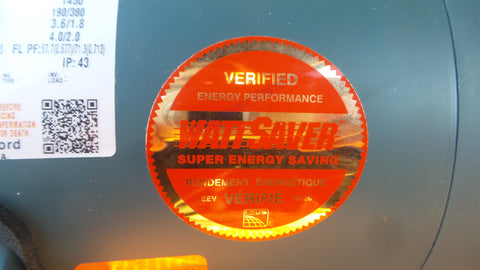

Leeson 119565.00 Brake Motor C6T17FC250A 1.5HP 1-1/2 HP Wattsaver 230V

Leeson

Leeson 119565.00 Brake Motor C6T17FC250A 1.5HP 1-1/2 HP Wattsaver 230V

$959.95 $2,285.00
We are closed for annual maintenance until June 13. All of our items are unique and in stock. Available on a first come, first serve basis. Once they are gone, they are gone. Please check back on this date to purchase. Thank you, First Rate Parts

Leeson 119565.00 Brake Motor C6T17FC250A 1.5HP 1-1/2 HP Wattsaver 230V 460V 3PH

LAST ONE!!!

IN STOCK, Ships immediately!!

This is the CHEAPEST price ANYWHERE on a genuine part.

This is new, never used or installed.

THIS IS A GENUINE OEM LEESON BRAKE MOTOR!! THIS IS NOT A CHEAP AFTERMARKET OR USED PART THAT WILL NOT LAST AND WILL NEED REPLACED!! DON'T WASTE TIME, MONEY, AND HASSLE REPLACING IT AGAIN!!!

Ships from the USA! Don't wait weeks or months to receive a counterfeit part from overseas!

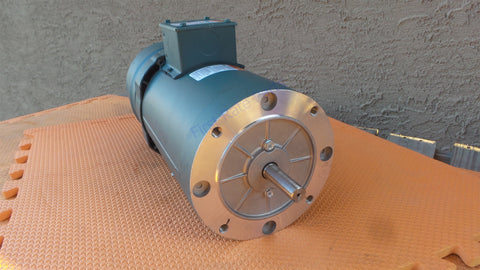

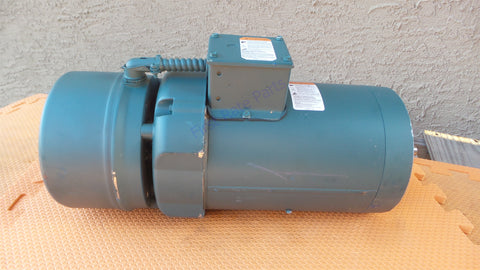

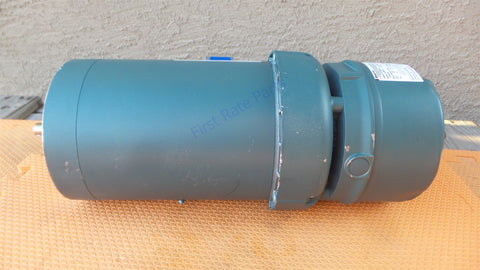

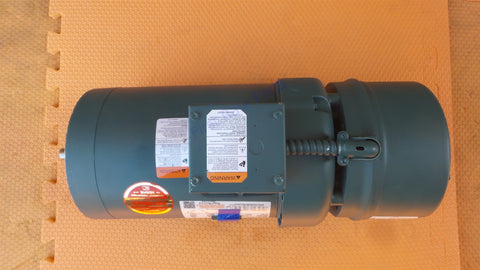

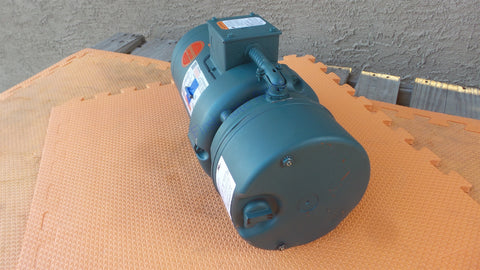

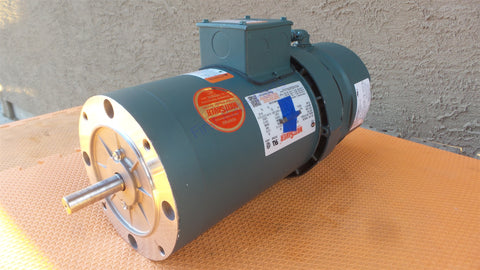

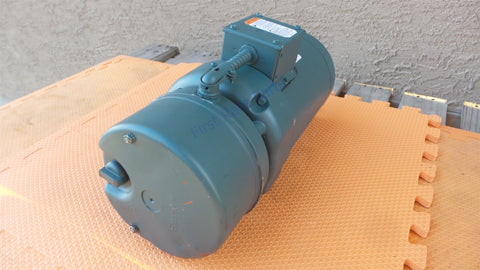

Note: this is a brand new part with some scratches and dings from storage and handling as shown in the pics. Minor cosmetic imperfections will not affect performance or functionality.

Ships in generic bulk packaging.

No additional parts or components are included beyond the items as shown in pics.

Get the best price ANYWHERE HERE!!!

Get your genuine high end part for much cheaper here.  Don't worry about old used parts breaking, this is brand new.  Don't settle for used parts this is brand new.

This part sells for over $2285

All returns must be returned in the original as received uninstalled condition with all accessories, components, and packaging. Items must be well packaged and insured. Buyers are responsible to ensure that items are received back to us in the original undamaged condition. Buyer is responsible for all shipping costs. Buyer must retain all packaging for an item damaged in shipment. A shipping claim cannot be processed without original packaging and hence the item cannot be returned or refunded.

Brand LEESON
Manufacturer Part Number 119565.00
Phase Three
Nameplate Horsepower @ 60 Hz 1-1/2 hp
Nameplate Voltage @ 60 Hz 208-230/460V AC
Usable @ 208V Usable at 208V
Nameplate RPM @ 60 Hz 1,750 RPM
Nameplate Service Factor @ 60 Hz 1.15
Full Load Amps @ 60 Hz 2.4 A
Frame Size 56C
Frequency 60 Hz
Insulation Class F
Output Shaft (Dia x L)5/8 in x 1-7/8 in
Shaft Diameter 5/8 in
Shaft Length 1-7/8 in
Motor Design Three-Phase
Motor Mounting Type C-Face
Motor Enclosure Type Totally Enclosed Fan Cooled
Motor Shaft Rotation CW/CCW
Motor Thermal Protection T-Stat
Nominal Efficiency 86.5 %
Number of Speeds 1

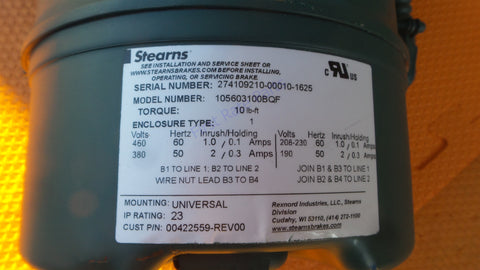

Brake Model/Series 56000
Brake Torque10 ft-lb
Conduit Box Position F1
Conduit Box Location Exterior
Duty Cycle Continuous
Inverter Rated Not Inverter Rated
Length Less Shaft 15-15/16 in
Max. Ambient Temp. 40 °C
Motor Bearings Ball
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Shaft Design Keyed
Overall Length 17-13/16 in
Usable @ 200V Not Usable at 200V
Product Type Brake Motor
Motor Application General Purpose
Manufacturers Warranty Length 18 mo
Standards CSA; UL Recognized
Includes Key
Weight 52 lb
UNSPSC26101612

Fits: (may fit various models, you are responsible to verify this is the correct part number for your application)
