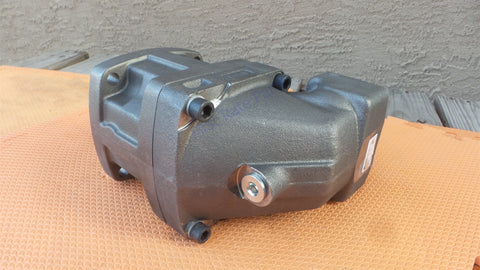

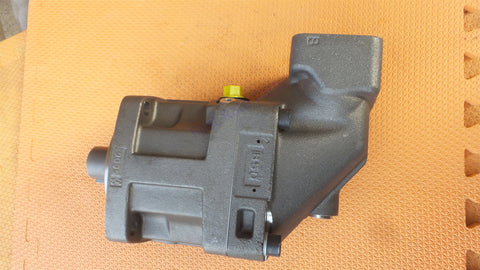

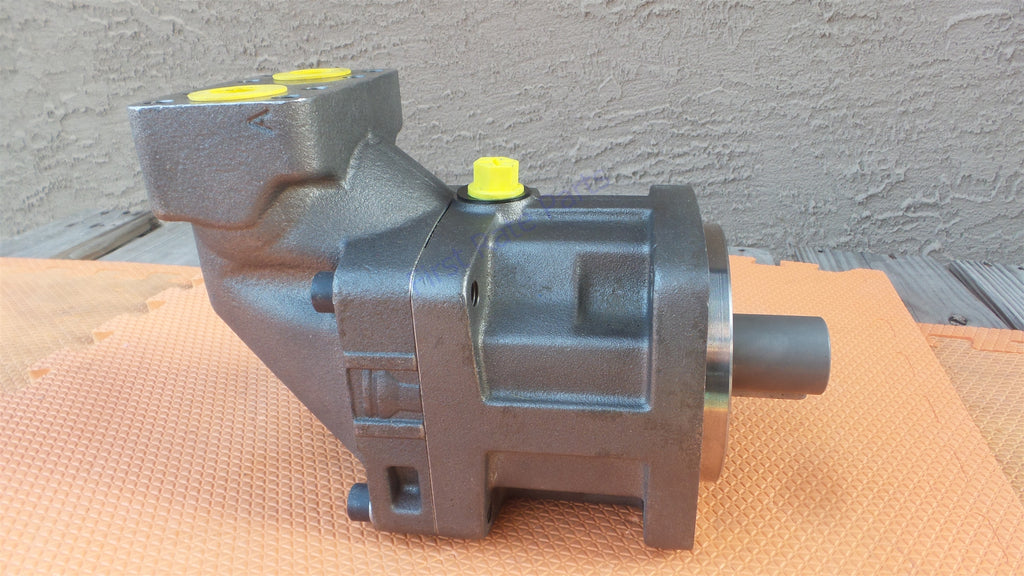

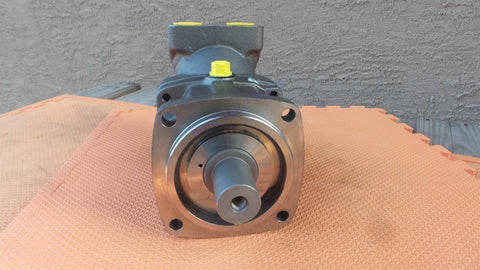

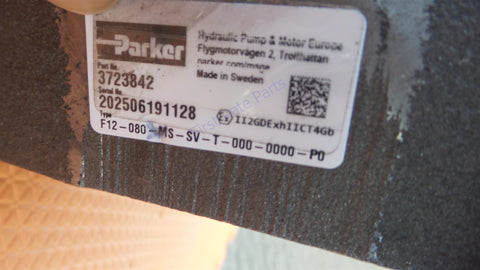

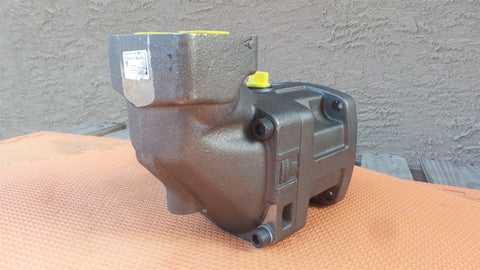

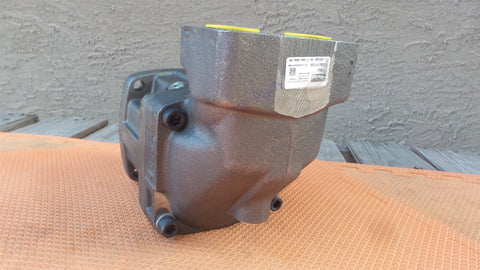

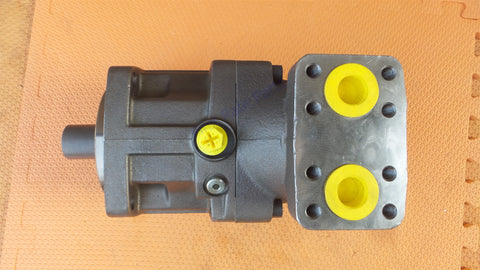

Parker 3723842 Bent Axis Piston Motor F12-080-MS-SV-T-000-0000-P0 Hydr

Parker

Parker 3723842 Bent Axis Piston Motor F12-080-MS-SV-T-000-0000-P0 Hydr

$2,879.95 $6,285.00

Parker 3723842 Bent Axis Piston Motor F12-080-MS-SV-T-000-0000-P0 Hydraulic OEM

LAST ONE!!!

IN STOCK, Ships immediately!!

This is the CHEAPEST price ANYWHERE on a genuine part.

This is new, never used or installed.

THIS IS A GENUINE OEM PARKER MOTOR!! THIS IS NOT A CHEAP AFTERMARKET OR USED PART THAT WILL NOT LAST AND WILL NEED REPLACED!! DON'T WASTE TIME, MONEY, AND HASSLE REPLACING IT AGAIN!!

Ships from the USA! Don't wait weeks or months to receive a counterfeit part from overseas!

Ships in generic bulk packaging.

No additional parts or components are included beyond the items as shown in pics.

Get the best price ANYWHERE HERE!!!

Get your genuine high end part for much cheaper here.  Don't worry about old used parts breaking, this is brand new.  Don't settle for used parts this is brand new.

This part sells for over $6285

All returns must be returned in the original as received uninstalled condition with all accessories, components, and packaging. Items must be well packaged and insured. Buyers are responsible to ensure that items are received back to us in the original undamaged condition. Buyer is responsible for all shipping costs. Buyer must retain all packaging for an item damaged in shipment. A shipping claim cannot be processed without original packaging and hence the item cannot be returned or refunded.

Hydraulic bent-axis (fixed displacement) motor with large frame + SAE C-C 1-1/2" keyed shaft + top ports - Parker Hannifin (F12 series) - 80cm3/rev. / 4.8in3/rev. displacement - 450bar / 6527psi max. continuous operating pressure max. - 107.8gallons/min (GPM) max. continuous input flow / 408L/min (LPM) max. continuous input flow flow - 5100rpm max. continuous - FPM seal - 2 x 1" (ISO 6162) SAE flange ports "A & B" + 1 x 7/8"-14 UN O-Ring Boss (ORB) threaded port "C" + 1 x 7/8"-14 UN O-Ring Boss (ORB) threaded port "D" - SAE C 4-bolt mounting flange - rated for -40°F...+239°F / -40°C...+115°C - prepared for speed sensr. - equivalent to 3786339 / F12080MSSVT0000000P0

Fits: (may fit various models, you are responsible to verify this is the correct part number for your application)

Primary brand
Parker Hannifin
Main function
Hydraulic motor
Product series / family name
Motors (hydraulic) > Bent axis motors > Fixed displacement
Sub-range name
F12 series
Functions
Hydraulic bent-axis (fixed displacement) motor
Design
large frame
SAE C-C 1-1/2" keyed shaft
top ports
prepared for speed sensr.
Rated fluid contamination (ISO) 20/18/13
Fluid optimum viscosity 15-30cSt (rated for 8-1000cSt)
Flow
107.8gallons/min (GPM) max. continuous input flow
408L/min (LPM) max. continuous input flow
Pressure
450bar / 6527psi max. continuous operating pressure
Rotational speed
50rpm min.
5100rpm max. continuous
Torque
127.6Nm / 94.2lb/ft theoretical torque at 100bar
Moment of inertia
8400kg.mm2 (0.0084kg.m2)
Connection type
2 x 1" (ISO 6162) SAE flange ports "A & B"
1 x 7/8"-14 UN O-Ring Boss (ORB) threaded port "C"
1 x 7/8"-14 UN O-Ring Boss (ORB) threaded port "D"
Mounting mode
SAE C 4-bolt mounting flange
Material
FPM seal
Ambient air temperature for operation
-40°F...+239°F / -40°C...+115 °C
Order code / Manufacturer SKU
F12-080-MS-SV-T-000-0000-P0
3786339
Manufacturer product status
Commercialized
Equivalent to
3786339
F12080MSSVT0000000P0
Displacement volume
80cm3/rev. max. displacement
4.8in3/rev. max. displacement
Benefits
Bent-axis fixed displacement motor/pump
It can be used in numerous applications in both open and closed loop circuits
Max intermittent pressure up to 500bar / 7251psi and continuous operating pressure up to 450bar / 6526psi
The 7 or 9 piston design provides high start-up torque and smooth motor operation
ISO / Cartridge / SAW and SAE versions
